Parts & Accessories

We can directly supply replacement Fanbeam parts and accessories for all Fanbeam systems

Fanbeam Control System Accessories

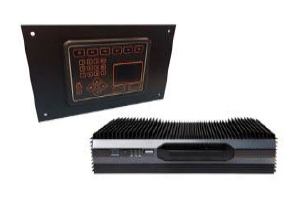

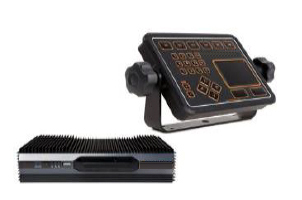

FANBEAM CONTROLLER PACKAGE 4.0 (PANEL)

Embeded PC, Control Panel (PM), 5M Control Panel Cable, Current Loop Converter, 2M Data Cable.

Part No. 1400

FANBEAM CONTROLLER PACKAGE 4.0 (BRACKET)

Embeded PC, Control Panel (BM), 5M Control Panel Cable, Current Loop Converter, 2M Data Cable.

Part No. 1401

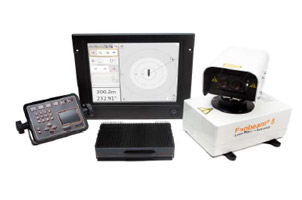

Fanbeam Service + Controller Package 5.0

Full 2 service of existing Fanbeam and upgrade to Fanbeam

Part No. 1400S

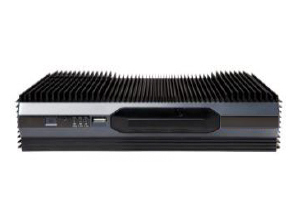

EMBEDDED PC MARINE CONTROLLER

Part No. FB30700

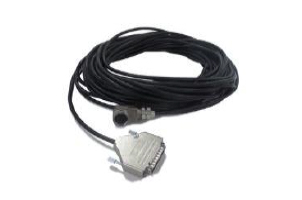

5M, 10m, 15m CONTROL PANEL CABLE (HMI Cable)

Part No. FB30702
Part No. FB30703
Part No. FB30704

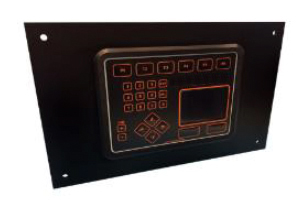

FANBEAM CONTROL PANEL (PM)

Part No. 1350

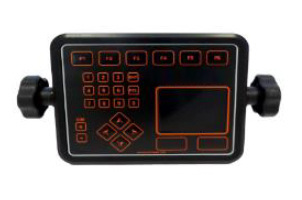

FANBEAM CONTROL PANEL (BM)

Part No. 1351

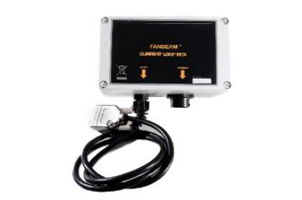

FANBEAM CURRENT LOOP CONVERTER

Part No. 1111

Fanbeam Parts & Accessories

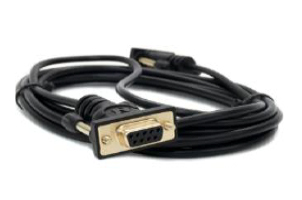

FANBEAM DATA CABLE 3M

Part No. 1018

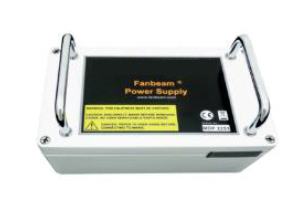

FANBEAM POWER SUPPLY UNIT (28V 3.5A)

Part No. 1009

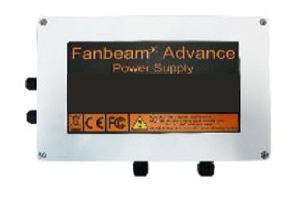

FANBEAM ADVANCE PSU

Part No. A-9933-0001

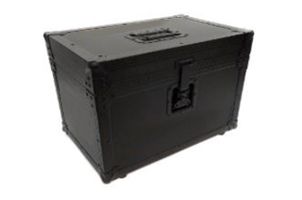

FANBEAM 5 TRANSIT CASE

Part No. 1013

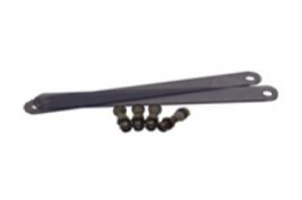

FANBEAM MOUNT BOLT / ISOLATION FEET KIT

Part No. 1016

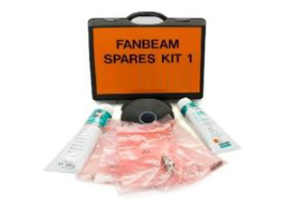

FANBEAM SPARES KIT 1 & GREASE GUN

Contents: Spares Kit 1 – Grease gun, fuses, opto-isolators,sealing tape, silicon grease, RTV, TORX bit.

Part No. 1090

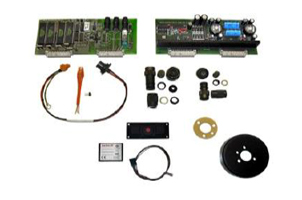

FANBEAM SPARES KIT 2 (PCB/CONN)

Contents: Spares Kit 2 Controller PCB, stepper PCB, power cable bulkhead connector, deck cable bulkhead connector, 2 pin cannon connector – power cable, 2 pin cannon connector – deck cable, CF Card for embedded PC, 30 x small O-rings, base gasket seal.

Part No. 1089

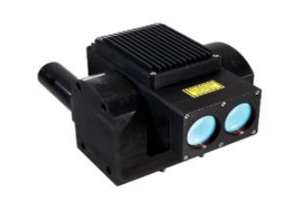

Reconditioned FANBEAM SPARES KIT 3 (LASER HEAD)

Contents: Spares Kit 3 Replacement laser and tilt yoke

Part No. 1315R

CONTROLLER PCB*

Part No. 1300

STEPPER PCB*

Part No. FB20483

MOTHERBOARD AND PCB CAGE

Part No. 1008

COMPLETE GEARBOX

Part No. 1001

POWER BULKHEAD CABLE LOOM

Part No. FB30491

DECK BULKHEAD CABLE LOOM

Part No. FB30490

Fanbeam® Reflective targets

Techmak produces a range of reflective targets designed specifically for use with the Techmak Fanbeam system. The targets come in various configurations, each with individual performance specifications.

In order to obtain optimal system performance, it is key that these specifications are considered by both vessel and offshore installation operators from a DP operations, safety, and awareness perspective.

Fanbeam® Reflective targets

Techmak recommends the use of Prismatic Cluster Targets with the Fanbeam for optimal performance. Stronger signal return makes differentiation from noise much easier and tracking more reliable.

Max range (typical) = 1.5km – 2km.

All prism clusters are supplied with a Prism Tree Mounting Bracket as standard.

4-WAY PRISM CLUSTER

Angular coverage 105° Comes with transit case

Part No. 1127

6-WAY PRISM CLUSTER

Angular coverage 150° Comes with transit case

Part No. 1128

8-WAY PRISM CLUSTER

Angular coverage 195° Comes with transit case

Part No. 1129

10-WAY PRISM CLUSTER

Angular coverage 240° Comes with transit case

Part No. 1130

12-WAY PRISM CLUSTER

Angular coverage 285° Comes with transit case

Part No. 1131

14-WAY PRISM CLUSTER

Angular coverage 330° Comes with transit case

Part No. 1132

16-WAY PRISM CLUSTER

Angular coverage 360° Comes with transit case

Part No. 1019

SINGLE PRISM

Angular coverage 60°. Max range 500m Can be added to existing cluster

Part No. FB30559

FANBEAM 16 WAY PRISM TREE

Part No. FB10558

PRISM CLUSTER TRANSIT CASE

Part No. FB30617

SINGLE PRISM COVER

Part No. FB30560

PRISM TREE MOUNTING BRACKET

Part No. FB10634

Fanbeam Tube Targets

These entry level targets are good for general short-range use where the Fanbeam is only required as a position reference in close range of the installation.

They consist of diamond grade reflective tape wrapped in a vertical orientation on 1m long aluminium tubes for optimal range performance.

1-ton shackles at both ends of the tube allow for deployment by crane and for simple attachment to a handrail or other structure on the side of an offshore installation.

These target types do require regular maintenance in order to ensure salt deposits do not build up which can damage the reflective properties of the target.

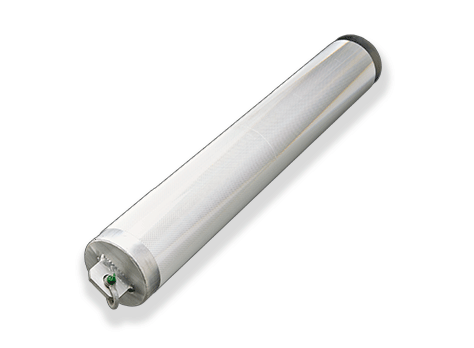

SINGLE REFLECTIVE TUBE TARGET

Angular coverage 360°. Max Range 150m. Comes with transit crate

Part No. 1014S

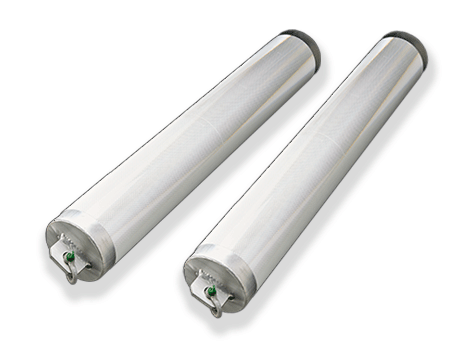

PAIR OF REFLECTIVE TUBE TARGETs

Angular coverage 360°. Max Range 150m. Comes with transit crate

Part No. 1014

Fanbeam® Deck Cables

The 7-core data or ‘deck’ cable comes terminated at both ends and is available in lengths up to 350m

8 PIN CONNECTOR

Deck Cable to Fanbeam

Part No. FB30620

8 PIN CONNECTOR

Deck Cable to Control System

Part No. FB30621

FANBEAM DECK CABLE 10M

Part No. 1068

FANBEAM DECK CABLE 25M

Part No. 1069

FANBEAM DECK CABLE 50M

Part No. 1010

FANBEAM DECK CABLE 100M

Part No. 1072

FANBEAM DECK CABLE 150M

Part No. 1077

FANBEAM DECK CABLE 200M

Part No. 1073

FANBEAM DECK CABLE 250M

Part No. 1078

FANBEAM DECK CABLE 300M

Part No. 1074

FANBEAM DECK CABLE 350M

Part No. 1079

FANBEAM ADVANCE DECK CABLE 50M

Part No. A-9933-0034

Fanbeam® Power Cables

The 3-core power cable is supplied as 20m as standard, but can be purchased up to 60m in length.

2 PIN CONNECTOR

Power Cable to Fanbeam

Part No. FB30619

3 PIN CONNECTOR

Power Cable to PSU

Part No. FB30618

FANBEAM POWER CABLE 20M

Part No. 1011

FANBEAM POWER CABLE 30M

Part No. 1051

FANBEAM POWER CABLE 40M

Part No. 1052

FANBEAM POWER CABLE 50M

Part No. 1053

FANBEAM POWER CABLE 60M

Part No. 1054
