Tube Targets

We supply tube reflectors designed specifically for use with the Fanbeam® system.

Overview

These entry level targets are good for general short range use where the Fanbeam is only required as a position reference in close range of the installation. They consist of diamond grade reflective tape wrapped in a vertical orientation on 1m long aluminium tubes for optimal range performance.

1 ton shackles at both ends of the tube allow for deployment by crane and for simple attachment to a handrail or other structure on the side of an offshore installation. These target types do require regular maintenance in order to ensure salt deposits do not build up which can damage the reflective properties of the target.

Single REFLECTIVE TUBE TARGET

Angular coverage 360°. Max Range 150m

Comes with transit case

Part No. 1014s

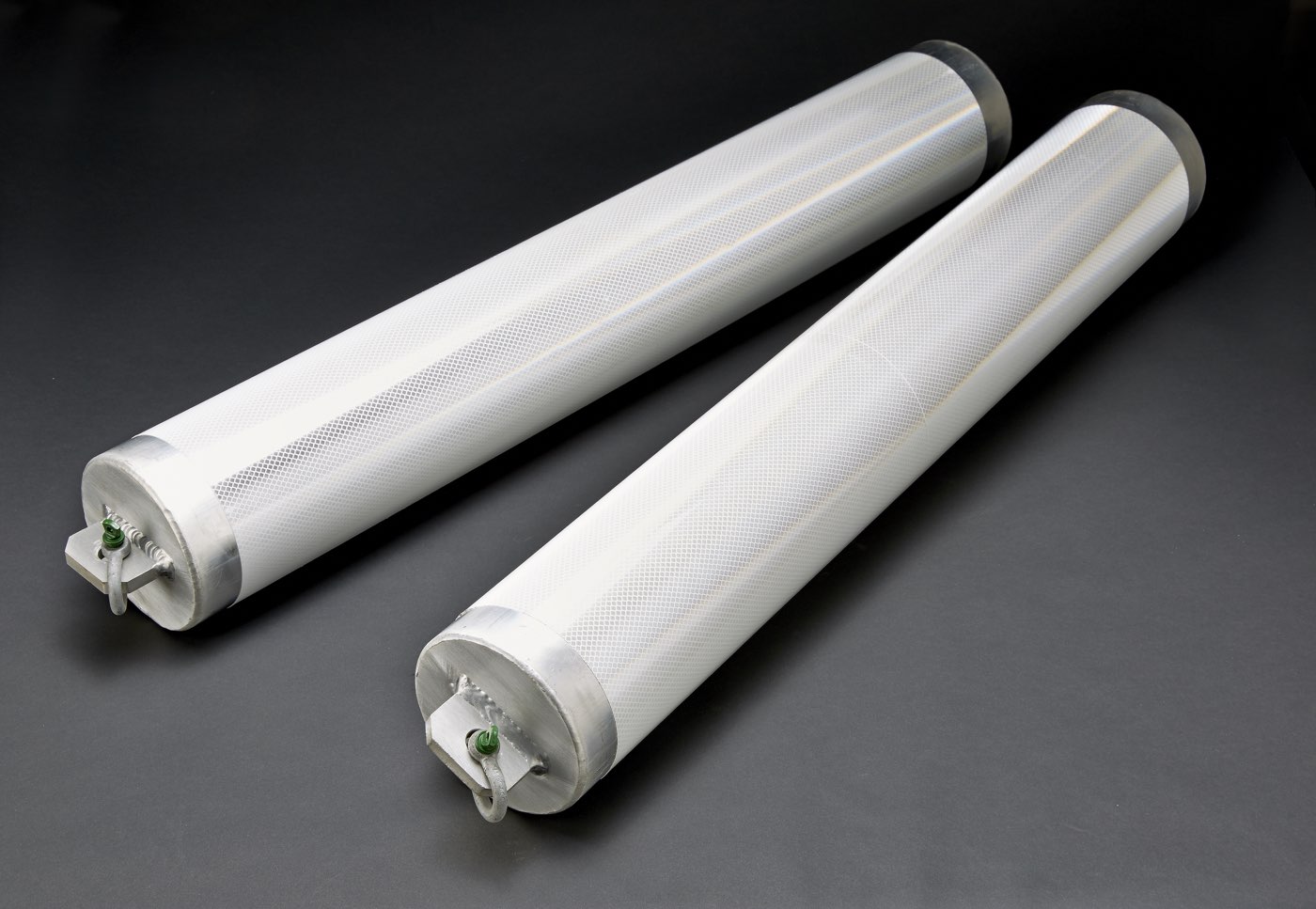

PAIR OF REFLECTIVE TUBE TARGETS

Angular coverage 360°. Max Range 150m

Comes with transit case

Part No. 1014

Parts & Accessories

FANBEAM 16 WAY PRISM TREE

Part No. FB10558

PRISM CLUSTER TRANSIT CASE

Part No.FB30617

SINGLE PRISM COVER

Part No.FB30560

PRISM TREE MOUNTING BRACKET

Part No. FB10634
