Prismatic Targets

We supply prismatic reflectors designed specifically for use with the Fanbeam® system.

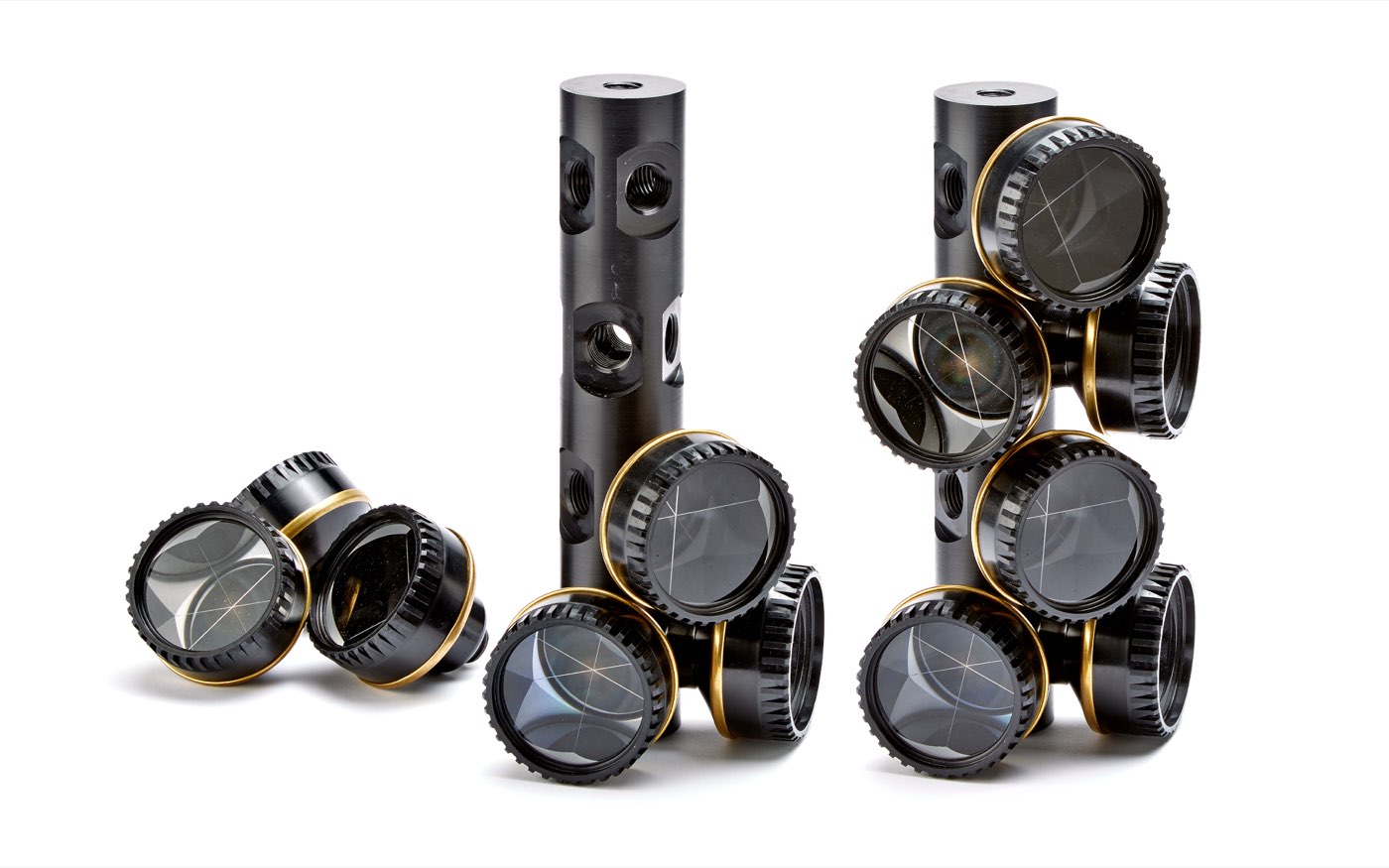

Prism Clusters

Techmak recommends the use of Prismatic Cluster Targets with the Fanbeam for optimal performance. Stronger signal return makes differentiation from noise much easier and tracking more reliable.

Max range (typical) = 1.5km – 2km.

All prism clusters are supplied with a Prism Tree Mounting Bracket as standard.

4-WAY PRISM CLUSTER

Comes with transit case

Angular coverage 105°

Part No. 1127

6-WAY PRISM CLUSTER

Angular coverage 150°

Comes with transit case

Part No. 1128

8-WAY PRISM CLUSTER

Angular coverage 195°

Comes with transit case

Part No. 1129

10-WAY PRISM CLUSTER

Angular coverage 240°

Comes with transit case

Part No. 1130

12-WAY PRISM CLUSTER

Angular coverage 285°

Comes with transit case

Part No. 1131

14-WAY PRISM CLUSTER

Angular coverage 330°

Comes with transit case

Part No. 1131

16-WAY PRISM CLUSTER

Angular coverage 360°

Comes with transit case

Part No. 1019

Single PRISM

Angular coverage 60° Max range 500m

can be added to existing cluster

Part No. FB30559

Parts & Accessories

FANBEAM 16 WAY PRISM TREE

Part No. FB10558

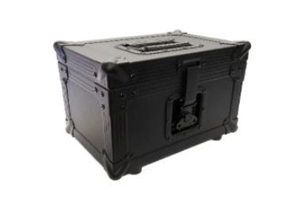

PRISM CLUSTER TRANSIT CASE

Part No.FB30617

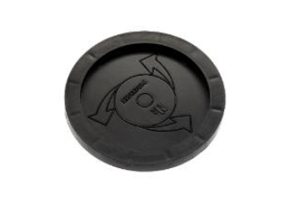

SINGLE PRISM COVER

Part No.FB30560

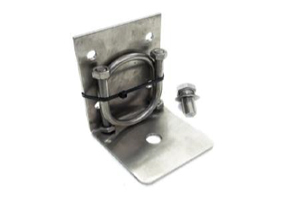

PRISM TREE MOUNTING BRACKET

Part No. FB10634
